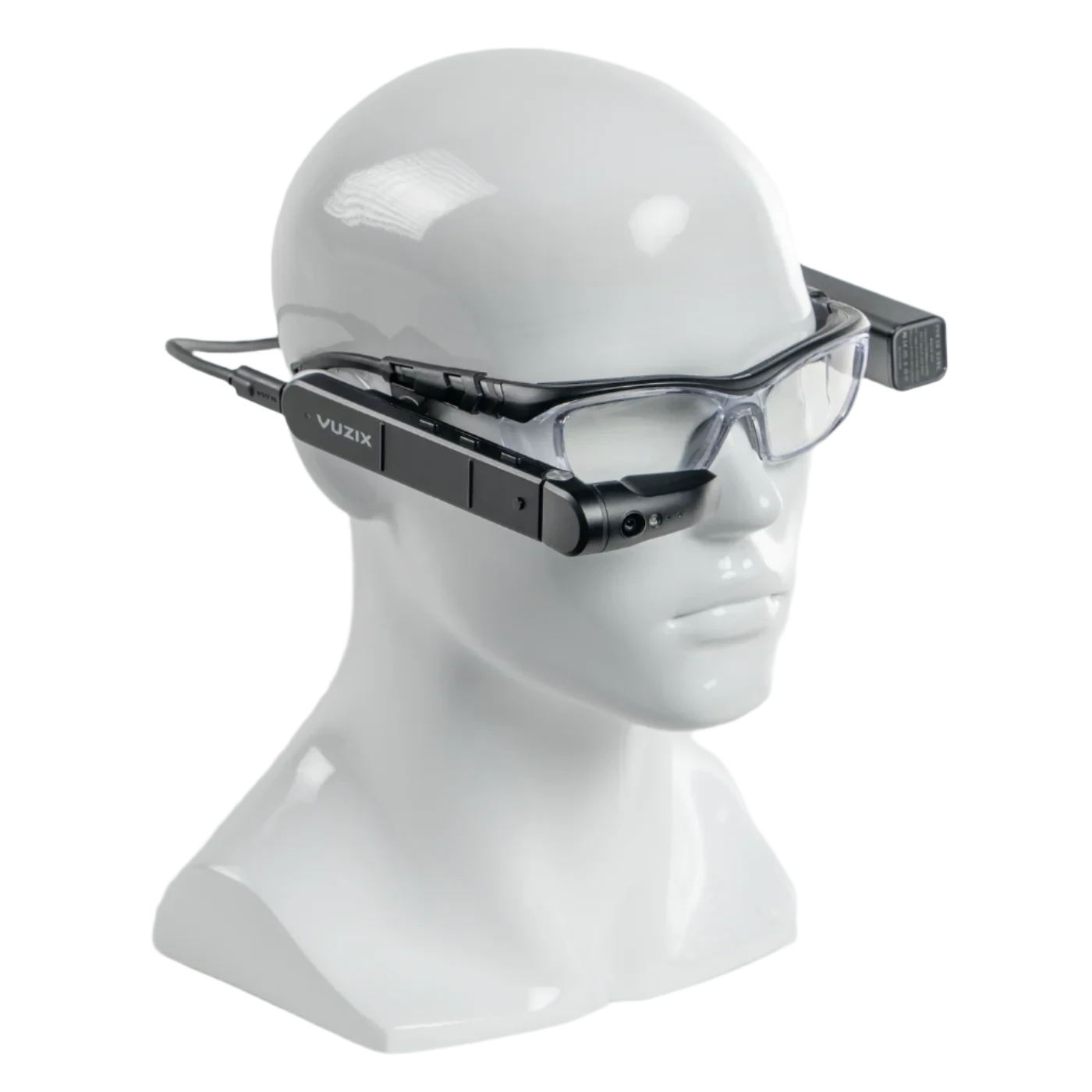

Vuzix M400 Smart Glasses | Extended Wear Kit

Vuzix M400 Specifications

Optics

• Display resolution: nHD color display
• Display type: OLED
• Aspect ratio: 16:9
• Field of view (diagonal): 16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches
• Brightness: > 2000 nits
• Contrast: > 10,000:1
• 24-bit color with true black
• Supports left or right eye use

General

• 8 Core 2.52Ghz Qualcomm XR1
• 6GB LPDDR4 RAM
• 64GB internal flash memory
• Android 11.0 OS
• OS and apps OTA upgradeable
• MDM available from multiple partners

Certifications

• IP67 Rated (All Weather Kit)
• Drop safe to 2 meters
• IEC60601-1-2:2014 Medical Device
• ISO 14644-1 Class 2 Cleanroom rating

Mounting options

• Vuzix M-Series Rail Eyeglass frames without lens (standard)
• Weighs less than 3 oz.
• Eyeglass frames with lens
• Safety glasses
• Hard hat mount

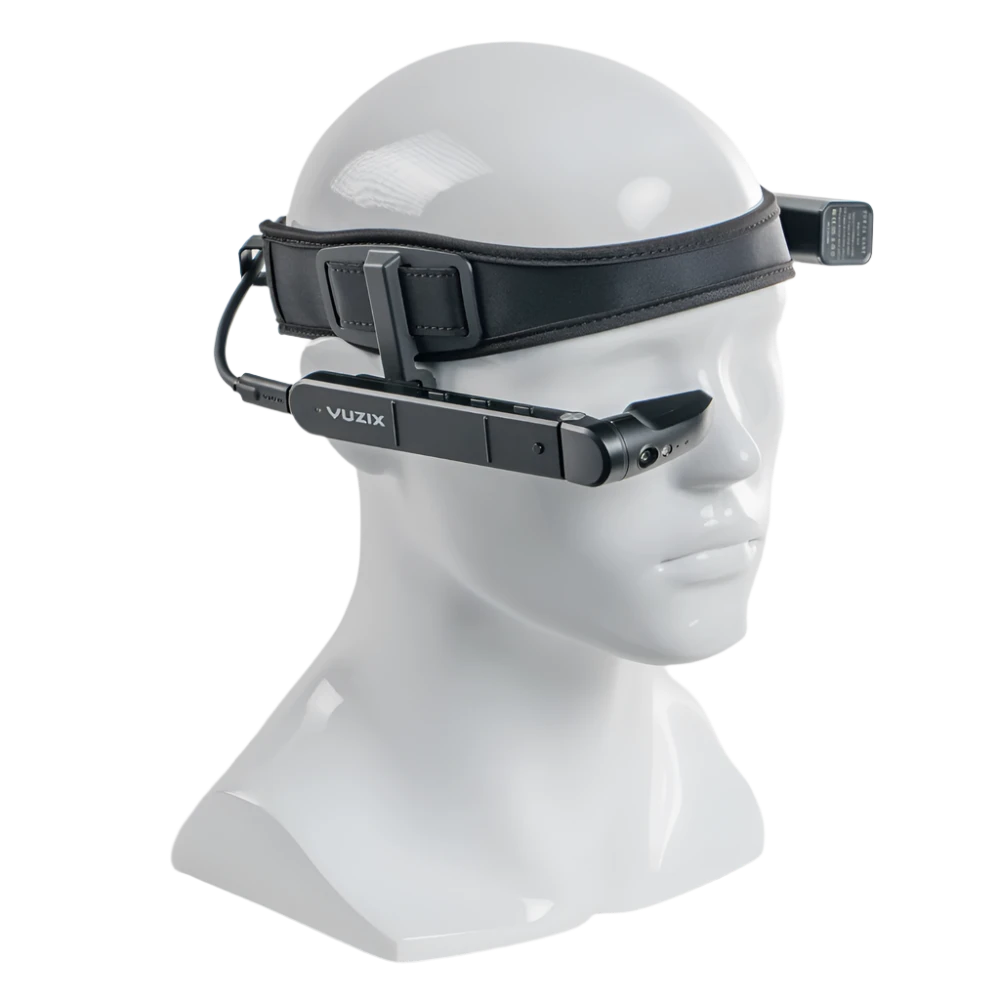

• Headband mount
• Peltor headphone mount

Battery

• 135mAh internal battery supports hot swapping of external batteries
• 750 mAh IP67 certified USB-C battery with 3-level LED indicator (All Weather Kit) or an extended life 4800 mAh USB-C power bank (Extended Wear Kit)
• Can be powered by 3rd-party USB battery packs in place of head-worn battery
• 2–12 hours of operation based on external battery choice

Controls

• 3 control buttons
• Voice control is customizable and supports multiple languages
• 2 axis touchpad with multi-finger support

Audio

• Integrated speaker (up to 97db output)
• Triple noise-canceling microphones
• BT audio: HSP/A2DP

Camera

• Up to 12.8-megapixel stills
• Up to 4k30 video
• Improved auto-focus (PDAF)
• Improved optical image stabilization
• LED flash/scene illumination
• Barcode scanning

Connectivity

• USB 3.1 Gen 2 on USB Type-C
• Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
• Bluetooth 5.0 BR/EDR/LE

Head Tracking

• 3-degree of freedom head tracking
• 3 axis gyro
• 3 axis accelerometer
• 3 axis mag/integrated compass

GPS

• GPS / GLONASS

Environment

• Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
• Operating humidity 0-95% RH
• Storage temperature 10-45ºC
• Storage humidity 0-95% RH
